Shanghai Antishicnc Machine Equipment Co., Ltd. is one of the most reliable manufacturers and suppliers of swiss style lathe in China, specialized in providing high quality machines with low price. We warmly welcome you to wholesale durable swiss style lathe for sale here from our factory.
Introduction
Swiss style lathe can easily handle the processing of bars with a diameter of Φ26mm. Depending on the type of guide sleeve, the processing length can be flexibly adjusted - the maximum length is 220mm when the guide sleeve is fixed, and the rotating guide sleeve (optional) is adapted to 180mm. The guide sleeve-free mode can also meet the needs of short parts. The spindle and radial power tool work well together, and drilling, tapping and other processes are completed in one go, without the need for frequent tool changes, making the processing of complex parts smoother.
In terms of performance, swiss style lathe has both the confidence of "fast", the spindle speed can reach 10000r/min, and the fast movement is light and neat; it also has the strength of "stable", with a spindle runout of 2μm and a repeat positioning accuracy of 3μm, ensuring stable processing accuracy. The Meehanite cast iron bed has been specially treated and is very rigid. With an oil-cooled spindle, it is not easy to "fatigue" even after working for a long time.
The operation is not complicated. The Taiwan Syntec system interface is intuitive, and novices can quickly get started. The fully servo-driven axis system is responsive, and the imported screw guide rails ensure the accuracy of the movement. The compact body design does not take up too much space, but can accommodate a variety of tools to meet different processing scenarios.
Whether it is mass production or small batch customization, SL263 swiss style lathe can complete the task with stable performance and is a reliable helper for the processing of small and medium-sized precision parts.
Technical parameter
|
Machine type |
SL263 |
|
|
Processing capacity |
Maximum machinable bar diameter (mm) |
Φ26 |
|
Spindle bore diameter (mm) |
Φ30 |
|
|
Maximum length (mm) - Guide bushlness |
2.5D (Max 50) |
|
|
Maximum length (mm)- Fixed guide bush |
220 |
|
|
Maximum length (mm)- Rotary guide bush |
180(0ptional) |
|
|
Spindle maximum drilling diameter (mm) |
Φ10 |
|
|
Spindle maximum tapping diameter (mm) |
M10 |
|
|
Radial live tool maximum drilling diameter (mm) |
Φ8 |
|
|
Radial live tool maximum tapping diameter |
M6 |
|
|
Mechanical capacity |
Spindle speed (r/min) |
10000 (Rotary guide bush 8000) |
|
Radial live tool speed (r/min) |
6000 |
|
|
Fast moving speed (m/min) |
20(x) |
|
|
24(Y,Z) |
||
|
Spindle bouncing (mm) |
≤0.002 |
|
|
Repeat position accuracy (mm) |
≤0.003 |
|
|

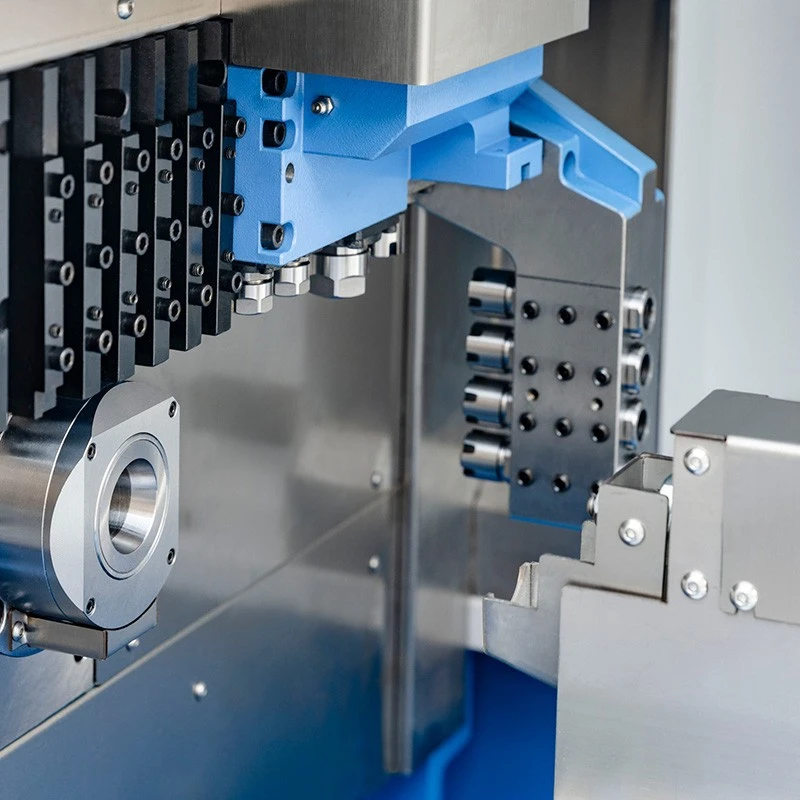

Tool system |
0.D. tool |
1(口 16)+5(口 12) |
|
Axial machining tool |
4(ER16) |
|
|
Radial live tool |
2(ER11)+2(ER16) |
|
|
Motor power |
Main spindle (kW) |
4.2 |
|
Linear drive axis (kW) |
1 |
|
|
Radial live tool (kW) |
1 |
|
|
Coolant pump (kW) |
0.26 |
|
|
Machine weight (kg) |
1800 |
|
|
Machine dimensions (L x W x H)(mm) |
1700x1300x1800 |
|
Standard Equipment
|
configuration |
Bare machine configuration |
Brand |
|
8.4 inch dual channel system |
SYNTEC |
|
|
Absolute position servo |
SYNTEC |
|
|
Electrical components |
SCHNEIDER |
|
|
Electric spindle |
Include |
China |
|
Spindle encoder |
Include |
SYNTEC |
|
Spindle bearing |
Include |
NSK(Japan) |
|
Import ball screw and guideway |
Include |
PMI/THK |
|
Shaft coupling |
KTR(Germany) |
|
|
Lock nuts |
Include |
YINSH(Taiwan) |
|
Spindle clamping device |
Include |
China |
|
Receiving device |
China |
|
|
Lubrication system |
Without lubrication pump |
HERG(Japan) |
|
Cooling system |
Without cooling pump |
ROCOI |
|
Pneumatic system |
Include |
AIRTAC |
|
LED lighting device |
LANGRUI |
|
|
LED three-color alarm light |
OUDEN |
|
|
Fully enclosed guards |
Include |
China |
|
Foot spacers and screws |
Include |
China |
|
Randomized tools |
Include |
China |
Optional Equipment
|
Part Name |
Details |
|
CNC system |
Fanuc |
|
Mitsubishi |
