Traditional Lathe

Shanghai Antishicnc Machine Equipment Co., Ltd. is one of the most reliable manufacturers and suppliers of traditional lathe in China, specialized in providing high quality machines with low price. We warmly welcome you to wholesale durable traditional lathe for sale here from our factory.

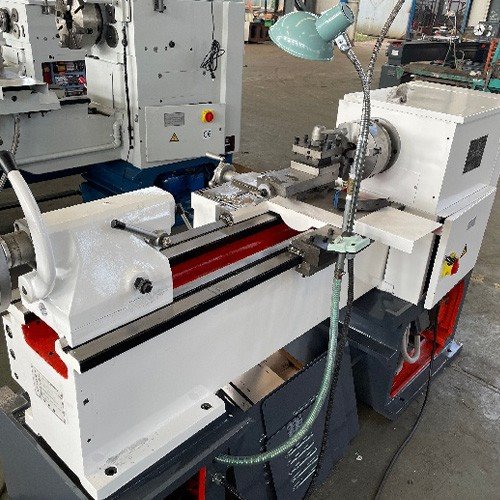

This traditional lathe supports high-precision turning of internal and external cylindrical and conical surfaces, as well as various rotary surfaces. It also offers a variety of machining functions, including threading, drilling, and oil groove drawing, making it easy to complete complex parts in one operation. The spindle has a through-hole diameter of 52mm and an MT6 taper. Its 12-speed transmission covers a speed range of 30 to 1600 rpm, allowing for flexible adjustment for diverse materials and cutting conditions.



The C6136D is capable of machining 30 metric threads and a variety of imperial threads. Its multi-speed longitudinal and transverse feed systems provide excellent performance in threading and precision cutting. The tailstock features an MT4 taper design and a 90mm center sleeve travel, ensuring stable support for long shaft parts.

• The traditional lathe 310mm width enhances vibration resistance and machining rigidity, ensuring long-term stable operation. The spindle motor is equipped with a 3/4kW power output, providing ample torque while maintaining energy efficiency. With dimensions of 2250×1130×1540mm, the machine offers a compact footprint and a net weight of 1800kg, making it suitable for a variety of workshop environments.
• With its practicality, ease of operation, and reliable structure, the C6136D traditional lathe is an ideal general-purpose turning machine for machining, repair shops, and training environments.

3-jaw chuck and adapte-200MM

Reducing sleeve Morse taper 6＃4＃ S76-1

Foot brake
LED work lamp

Mounting pad and foot blot( M20x400 GB/T799-88)

Dead center Morse GB9204.1-88

Suitable wrench

Oil gun

Cooling device

V-belt A-2000

Center frame

Follow rest

Four-jaw chuck(250MM)

Four jaw chuck flange(250MM)

Drive plate(220MM)

Faceplate(485MM/520MM)
