Punch Shear Machine

Shanghai Antishicnc Machine Equipment Co., Ltd. is one of the most reliable manufacturers and suppliers of punch shear machine in China, specialized in providing high quality machines with low price. We warmly welcome you to wholesale durable punch shear machine for sale here from our factory.

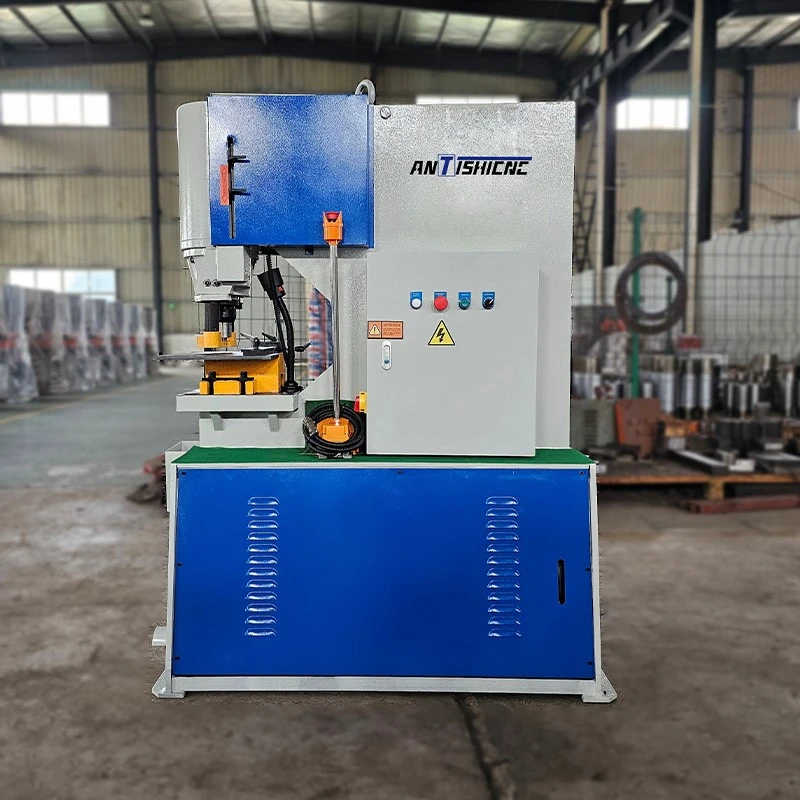

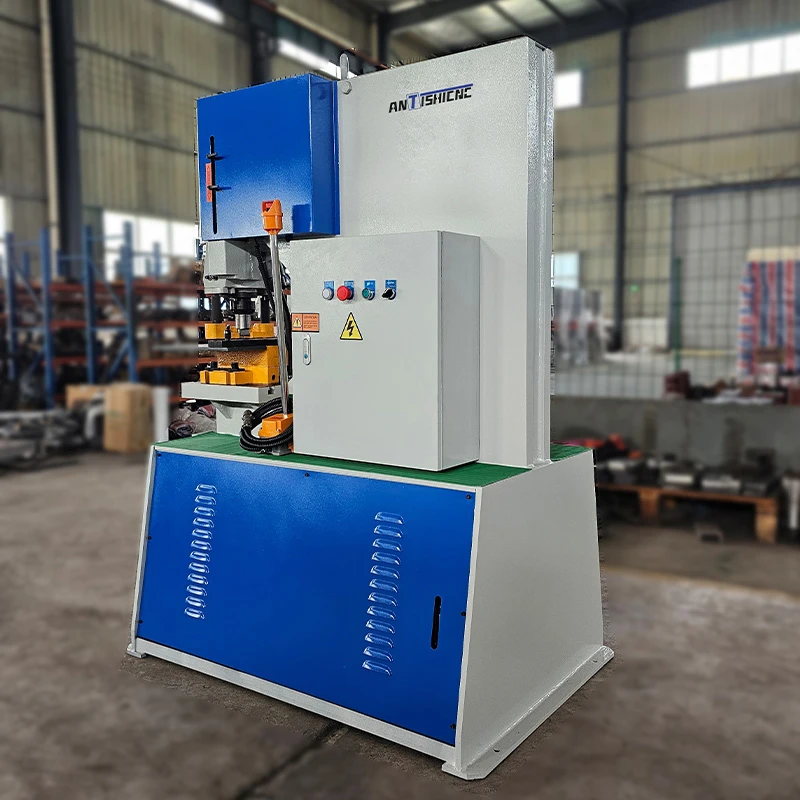

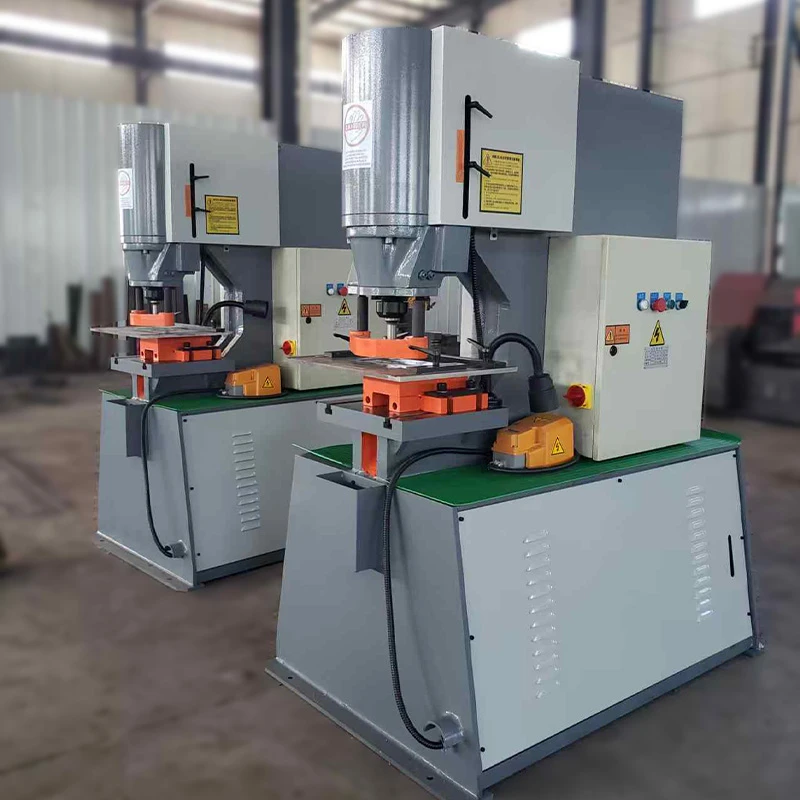

The Punch shear machine boasts excellent punching capabilities, able to punch holes up to 35 × 25 mm or 50 × 18 mm (diameter × thickness), including round, square, and oblong hole types. With a 20 mm stroke, it achieves up to 26 cycles per minute. Its 500 mm throat depth is ideal for batch processing of small to medium-sized workpieces.

The notching function is equally capable, supporting rectangular notches (57 × 100 × 14 mm) and V-notches (105 × 105 × 13 mm and 145 × 145 × 12 mm), delivering precise results for irregular shape processing.

With dedicated tooling, the machine can be expanded for use as a press or bending machine, performing single-V bending on 250 × 20 mm workpieces, multi-V bending on 600 × 5 mm materials, and pipe end notching on tubes up to ⌀100 mm.

The Punch shear machine is designed for both convenience and efficiency, featuring a working height of 1065 mm for easy operation. It has a compact footprint with dimensions of 1600 × 800 × 2000 mm and a net weight of 2700 kg. Powered by a 7.5 kW motor, it delivers stable performance, offering a reliable and efficient all-in-one solution for metal fabrication needs.

• Optional tooling
• Automatic oil cooling system
• Max.500/750mm throat depth for punching station
• CNC positioning system
