Product Introduction
A universal slotting machine is a versatile, reciprocating machine tool designed primarily for cutting slots, keyways, grooves, and other vertical or angular recesses in workpieces. It is called "universal" due to its ability to handle a wide range of operations and workpiece configurations, including both straight and angled cuts, making it adaptable to diverse manufacturing needs.
Product Advantages
Strong Versatility
Capable of processing keyways, splines, grooves, and irregular surfaces on various workpieces (e.g., shafts, gears, bushings), adapting to both ferrous and non-ferrous materials, and compatible with different slotting depths and widths.
High Machining Accuracy
Equipped with precision lead screws, guide rails, and indexing mechanisms, ensuring tight tolerances for slot dimensions (often within ±0.01mm) and good surface finish, meeting the needs of precision component manufacturing.
Simple Operation and Adjustment
Features user-friendly controls for adjusting stroke length, speed, and feed rate; allows quick setup for different workpieces without complex programming, suitable for small-batch and custom production.
Robust and Durable Construction
Built with heavy-duty cast iron beds and rigid frames, minimizing vibration during high-load slotting, ensuring stable performance and long service life even in continuous operation.

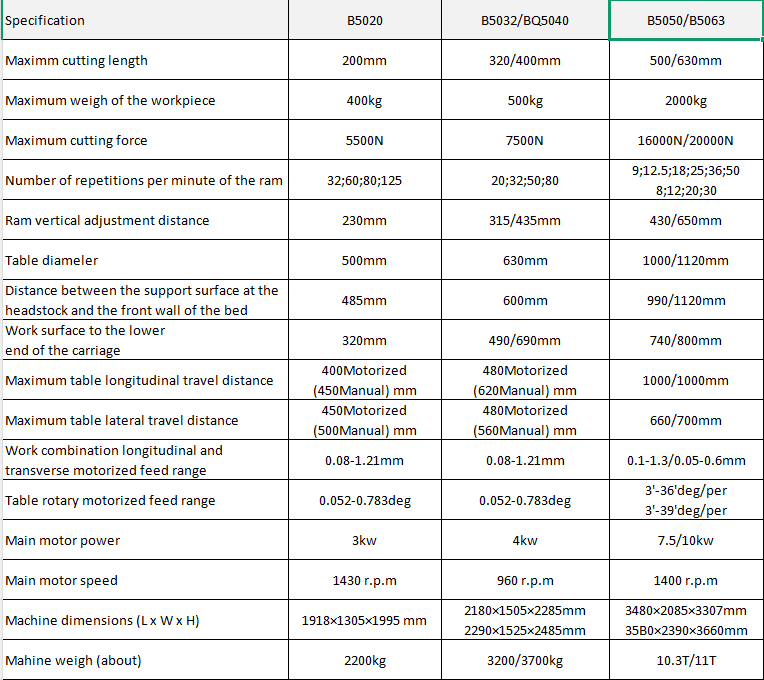

Product Specification
Application
Mechanical Manufacturing
Processing keyways on shafts and hubs to ensure precise fitting of components.
Cutting spline grooves on cylindrical workpieces for transmitting torque in mechanical assemblies.
Automotive and Aerospace Industries
Machining internal slots in engine parts and aerospace components where precise fit and load distribution are critical.
Creating slots on curved or irregular surfaces, such as those on gearboxes or aircraft structural parts, which are challenging for other machines.
Tool and Die Making
Fabricating slots in dies, molds, and jigs for holding or guiding workpieces during manufacturing processes.
Producing specialized slots in cutting tools to enhance their functionality.
General Repair and Maintenance Workshops
Repairing worn keyways or slots on machinery parts to restore their original dimensions and functionality.
Customizing non-standard slots for unique repair tasks, such as modifying old equipment components.
Metalworking for Small-Batch Production
Handling small to medium batches of workpieces with varying slot sizes and shapes, thanks to the machine’s easy adjustability and versatility.
Processing blind slots and internal slots in hollow workpieces, which are difficult to machine with lathes or milling machines.
Precautions for use
Pre-operation inspection
Before operation, inspect the transmission components, lubrication system, and safety devices. Ensure the workpiece and tool are securely clamped, and that the tool extension is appropriate and sharp.
Safety protection
Wear protective equipment, inspect the machine while idling, adjust parameters according to the material, avoid touching moving parts, and immediately shut down the machine if any abnormality occurs.
Operation Control
Avoid retraction adjustments, perform deep groove cutting in multiple steps, and keep the table clean to ensure machining accuracy.
Maintenance after shutdown
After shutting down the machine, remove the workpiece and tool, clean the equipment, regularly inspect and tighten, change the oil, and prevent rust and dust during extended periods of non-use.
FAQ
Q: Why does the slotting tool break easily?
A: Likely due to overlong tool extension, excessive feed rate, or blunt blade. Shorten tool extension, reduce feed, and sharpen the tool.
Q: How to fix uneven slot depth?
A: Check if the workpiece is clamped tightly or the workbench is loose. Rebind the workpiece and tighten the workbench screws.
Q: Why does the machine vibrate heavily?
A: May be caused by unbalanced workpiece, worn guide rails, or improper cutting parameters. Balance the workpiece, lubricate rails, and adjust parameters.
Q: Can it process non-metallic materials?
A: Yes, for materials like hard plastic or wood, but use slower speed and suitable tools to avoid tool damage.
