Product Overview

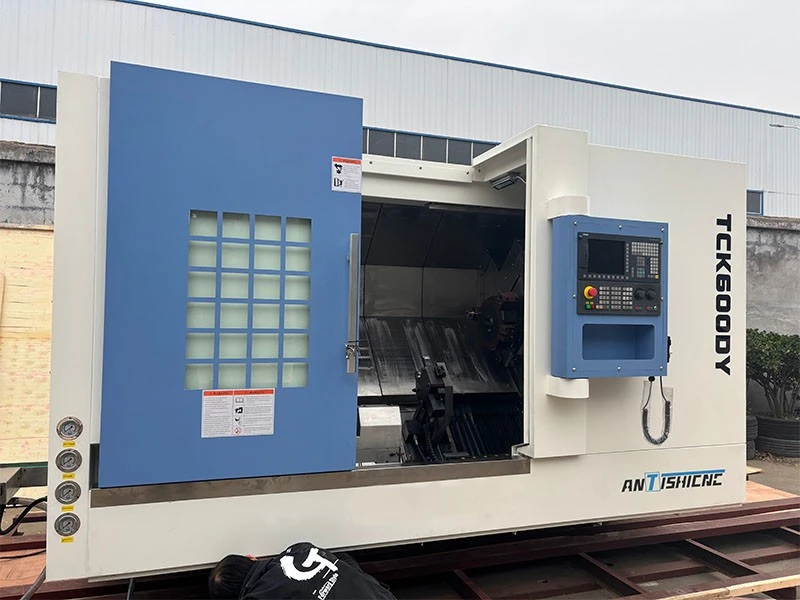

- The TCK600Y-500 4 axis CNC lathe is a high rigidity slant bed turn mill composite machine designed for high efficiency, high precision mass production.It integrates turning, milling, drilling, tapping, and end face machining in one clamping, widely used for processing shaft and disc parts in automotive, motor, bearing, hydraulic and aerospace industries.
- The machine adopts a 45° integral cast iron bed, 45mm heavy-duty roller linear guides, and 12Nm servo motors on X/Z/Y axes, achieving strong stability under heavy cutting conditions.Positioning accuracy: 0.01mm; Repeat positioning accuracy: 0.006mm, machining accuracy reaches IT6–IT7 grade, ensuring high consistency and stability for batch production.
The Core Advantages of Our 4-Axis CNC Lathes
High Rigidity & Heavy Cutting Performance
- 45° integrated cast iron bed optimized by ANSYS
- 45mm precision roller linear guides
- Effectively reduces vibration and deformation
- Stable performance in heavy cutting
Ultra-High Precision
- X-axis repeat positioning accuracy: 0.006mm
- Z-axis repeat positioning accuracy: 0.008mm
- Machining grade: IT6–IT7
- High consistency for mass production
4-Axis Turn-Mill Composite
- Supports turning, threading, milling, drilling, tapping
- Y-axis ±50mm stroke for eccentric machining
- 12-station BMT55 power tool turret
- One-time clamping, high efficiency
Stable & Reliable
- 11kW high-power spindle motor
- Hydraulic tailstock (Mohs 5#)
- Fast movement: X=15m/min, Z=18m/min
- Comply with GB/T 16462 international accuracy standards
Technical Parameters
Model: TCK600Y-500 4 Axis CNC Lathe
|
Parameter |
Unit |
TCK600Yx500 |
|
|
Processing range |
Max. Swing over bed |
mm |
Φ650 |
|
Max. Swing over carriage |
mm |
Φ420 |
|
|
Max processing length |
mm |
Φ500 |
|
|
Max processing diameter |
mm |
Φ500 |
|
|
The distance between the two centers |
mm |
650 |
|
|
Axis |
Torque of X-axis Motor |
Nm |
12 |
|
Torque of Z-axis Motor |
Nm |
12 |
|
|
Torque of Y-axis Motor |
NM |
12 |
|
|
X-axis Stroke |
mm |
280 |
|
|
Z-axis Stroke |
mm |
650 |
|
|
axis Stroke |
mm |
±50 |
|
|
Spindle |
Spindle end type |
A2-8 |
|
|
Spindle through hole |
mm |
Φ86 |
|
|
Spindle motor |
kw |
11 |
|
|
Maximum bar diameter |
mm |
Φ75 |
|
|
Hydraulic hollow chuck |
inch |
10 |
|
|
Max.Spindle speed |
rpm |
3000 |
|
|
Tailstock |
Tailstock |
Hydraulic pulling + Hydraulic locking + Hydraulic sleeve |
|
|
Tailstock Sleeve Taper |
Mohs 5# |
||
|
ailstock Sleeve Stroke |
mm |
120 |
|
|
Tailstock Travel |
mm |
350 |
|
|
Speed |
X-axis Fast movement speed |
m/min |
15 |
|
Z-axis Fast movement speed |
m/min |
18 |
|
|
axis Fast movement speed |
m/min |
6 |
|
|
Power Tool turret |
Tool Capacity |
BMT55/12-station |
|
|
Turning Tool Shank Size |
mm |
25×25 |
|
|
Max.Boring Tool Diameter |
mm |
Φ32/40 |
|
|
Power Head |
ER25 |
||
|
Power Head Motor |
Nm |
12 |
|
|
Accuracy |
X-axis Positioning Accuracy |
mm |
0.01 |
|
axis Positioning Accuracy |
mm |
0.012 |
|
|
X-axis Repeat Positioning Accuracy |
mm |
0.006 |
|
|
Z-axis Repeat Positioning Accuracy |
mm mm |
0.008 |
|
|
Others |
Power supply capacity |
kVA |
22 |
|
Cut fluid tank volume |
L |
350 |
|
|
Two-center load capacity |
KG |
600 |
|
|
Machine tool net weight |
KG |
5800 |
|
|
Length*Width*Height |
3200*2100*2350 |
||
