Introduction
- This CK6152E series CNC horizontal lathe of models has a maximum bed rotation diameter of Φ530mm, a maximum rotation diameter of Φ250mm on the slide, and a processing length of 825mm to 2825mm. Four center distances (1000/1500/2000/3000mm) can flexibly meet the processing needs of workpieces of different lengths. The spindle system is equipped with a high-precision spindle bearing group and has been dynamically balanced and assembled and tested. The spindle through-hole diameter is Φ90mm, which is suitable for the 10-inch hollow chuck pull tube diameter of Φ75mm, ensuring the high precision, low noise and strong rigidity of the spindle, which is suitable for high-demand processing of disc and shaft parts.

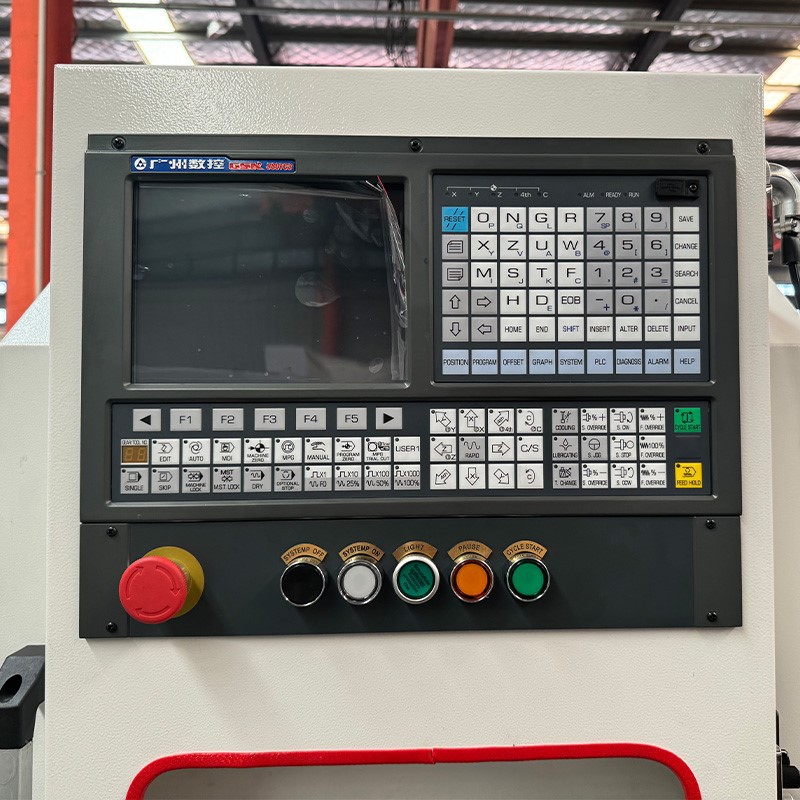

- The CNC horizontal lathe tool adopts GSK980TC3 CNC system, with domestic high-precision ball screw and special bearings for screw, to achieve X/Z axis fast feed speed of 6/8 m/min respectively, the minimum setting unit is 0.001mm, the processing response is fast, and the precision control is excellent. The guide rails and saddle guide rails are made of high-frequency hardened hard rails made of special materials, which are super hard and wear-resistant. The guide rails are equipped with scraping devices to effectively prevent iron chips and coolant corrosion and extend the service life of the machine tool.
CK6152E CNC horizontal lathe is also equipped with a 4-station electric tool holder, the standard tool installation size is 25×25mm, and it supports a variety of processing technology combinations. The tailstock adopts an ordinary manual structure, and a hydraulic tailstock can also be selected. The sleeve diameter is Φ75mm, the inner hole taper is MT5#, and the stroke is 150mm, which can meet the strong support requirements of long shaft parts. All lubrication points of the entire machine tool are equipped with a forced automatic quantitative lubrication system. When the lubrication is abnormal or the oil is insufficient, the system will automatically alarm to ensure stable and reliable operation.
Technical parameter
|
Specifications |
Unit |
MODEL |
|||||
|
CK6152E/ 1000 |
CK6152E/ 1500 |
CK6152E/ 2000 |
CK6152E/ 3000 |
||||
|
Max.swing diameter over bed |
mm |
Φ530 |
Φ530 |
Φ530 |
Φ530 |
||
|
Max. machining diameter on the bed |
mm |
Φ400 |
Φ400 |
Φ400 |
Φ400 |
||
|
X-guide rail span |
mm |
220 |
220 |
220 |
220 |
||
|
Z-guide rail span |
mm |
440 |
440 |
440 |
440 |
||
|
Maximum rotation diameter on the slide |
mm |
Φ250 |
Φ250 |
Φ250 |
Φ250 |
||
|
Center distance |
mm |
1000 |
1500 |
2000 |
3000 |
||
|
Maximum disc processing diameter |
530 |
530 |
530 |
530 |
|||
|
Maximum turning length |
mm |
825 |
1325 |
1825 |
2825 |
||
|
Center height |
From the bed |
mm |
265 |
||||
|
From the ground |
mm |
1125 |
|||||
|
Spindle through hole diameter |
mm |
Φ90 |
|||||
|
Bar diameter |
mm |
Φ79 |
|||||
|
Optional 10-inch hollow chuck pull tube inner diameter |
mm |
Φ75 |
|||||
|
Spindle end type |
A2-8 |
||||||
|
Chuck |
mm |
Ordinary Φ250 (80 holes) |
|||||
|
Spindle taper taper |
No |
Metric 100, 1:20 (82 holes) |
|||||
|
Spindle speed |
rpm |
Manual 3 gears: 30～150, 90～450, 315～1600 |
|||||
|
Tailstock sleeve diameter |
mm |
Φ75 |
|||||
|
Tailstock sleeve inner taper |
No |
MT5# |
|||||
|
Tailstock sleeve travel |
mm |
150 |
|||||
|
Tailstock type |
Ordinary hand crank (optional hydraulic tailstock) |
||||||
|
Electric tool holder tool position |
Pcs |
4 |
|||||
|
Tool square size |
mm |
£25×25(Four position)-Standard |
|||||
|
Screw type |
X direction |
mm |
FDC2506-P3 |
||||
|
Z direction |
mm |
FDC4210-P3 |
FDC5010-P3 |
FDC5010-P3 |
FDC6310-P3 |
||
|
X/Z fast moving speed |
m/min |
6/8 |
6/8 |
6/8 |
6/8 |
||
|
X travel |
mm |
300 |
300 |
300 |
300 |
||
|
Z travel |
mm |
1000 |
1500 |
2000 |
3000 |
||
|
Minimum setting unit |
mm |
0.001 |
0.001 |
0.001 |
0.001 |
||
|
Main motor power |
KW |
7.5 |
7.5 |
7.5 |
7.5 |
||
|
Total power |
KW |
12 |
12 |
13 |
13 |
||
|
Net weight of machine tool |
Kg |
2900 |
3150 |
3500 |
4300 |
||
|
Machine size(L*W*H) |
mm |
2640×1800×1740 |
3100×1800×1740 |
3600×1800×1740 |
4800×1800×1740 |
||
Stardard Equipment
|
Part Name |
Specification |
Quantity |
Brand |
|
Control system |
GSK 980TC3 |
1 set |
GSK |
|
Spindle motor |
7.5 KW Servo main motor |
1 set |
GSK |
|
Spindle structure |
Manual 3 steps |
1 set |
ANTS |
|
Spindle bearing |
NN3026K/W33+234426BM1/SP+NN3022K/W3 |
1 set |
China |
|
Guide rail |
High frequency quenching |
1 set |
ANTS |
|
Screw bearing |
Special bearings for ball screws |
1 set |
DRZ/HBB |
|
Tool post |
Electric 4 position |
1 set |
WENCH |
|
Automatic lubrication device |
RBCLB-2BK |
1 set |
HEJIN |
|
Three-jaw manual chuck |
K11250 |
1 set |
CHINA |
|
Cooling pump |
150W/250W |
1 set |
CHINA |
|
T hydraulic station (optional) |
1 Short Line |
1 set |
MONFR/Geyao |
|
Hydraulic chuck (optional) |
6",10",12",15" |
1 set |
BDEFU/KEPUTE |
Optional Equipment
|
Part Name |
Details |
|
CNC system |
FANUC |
|
SIEMENS |
|
|
HUAZHONG |
|
|
Chip conveyor |
Side place |
|
Behind place |
|
|
Oil mist collector |
|
|
Oil-Water Separator |
|
|
Bar material feeder |
|
|
Blowing device |
|
|
Water gun |
|
|
Soft jaw chuck |
|
|
Steady rest |
|
|
Fully enclosed protection |
|
The total motor power is 12-13kW, the net weight of the whole machine is 2900-4300kg, with reasonable structure, easy operation and maintenance. It is an important equipment to improve the production efficiency and processing quality of enterprises.
