Shanghai Antishicnc Machine Equipment Co., Ltd. is one of the most reliable manufacturers and suppliers of horizontal cnc lathe in China, specialized in providing high quality machines with low price. We warmly welcome you to wholesale durable horizontal cnc lathe for sale here from our factory.
Introduction
Product Introduction

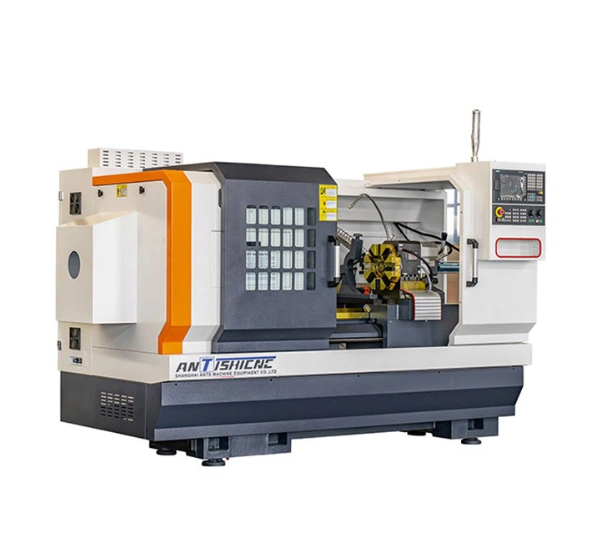

- CK6150 series horizontal CNC lathe is a high-performance flat bed CNC machining equipment with compact structure, mature performance, high spindle torque, strong rigidity and excellent precision retention. It is widely used for turning external & internal cylindrical surfaces, conical surfaces, arc surfaces, end faces, and metric/imperial single/multi-threads.
- This series includes CK6150/1000, CK6150/1500, CK6150/2000 models. Max swing over bed is Φ500mm, max swing over carriage is Φ250mm, center distance ranges from 1000mm to 2050mm, suitable for various shaft and disc workpieces in automated production lines.
- The lathe adopts high-frequency hardened heavy-duty box guideways, high-precision ball screws, and automatic lubrication system, ensuring long-term precision stability and reliable heavy cutting performance.
Key Core Advantages
- High-rigidity flat bed structure with super hard guideways, strong shock resistance, good precision retention
- Dual spindle bore options: Φ82mm / Φ130mm, matching different bar processing requirements
- High torque spindle, low noise, stable running, suitable for long-term mass production
- X/Z axis minimum setting unit 0.001mm, high positioning accuracy and repeatability
- Standard 4-station electric tool holder, optional 6/8-station for higher efficiency
- Automatic forced lubrication system, low failure rate, easy maintenance
- Compact layout, small footprint, suitable for various workshop environments
Technical Parameters
|
Name |
Unit |
Specifications |
||||
|
CK6150/1000 |
CK6150/1500 |
CK6150/2000 |
||||
|
Max. Swing over Bed |
mm |
Φ500 |
||||
|
X-direction rail span |
mm |
210 |
||||
|
Z-direction rail span |
mm |
400 |
||||
|
Max. Swing over slide |
mm |
Φ250 |
||||
|
Top distance |
mm |
1000 |
1500 |
2050 |
||
|
Max. disc machining diameter |
500/480(6/8 Position) |
|||||
|
Max. turning length |
mm |
850/730 (6/8 Position) |
1350/1230 (6/8 Position) |
1920/1830 (6/8 Position) |
||
|
Center High |
From the bed |
mm |
276 |
|||
|
From the ground |
mm |
1110 |
||||
|
Spindle through hole diameter |
mm |
Φ82/Φ130 |
||||
|
Bar diameter |
mm |
Φ80/Φ128 |
||||
|
Optional hollow chuck tie rod through hole |
mm |
Φ65/ Φ118 |
||||
|
Spindle end type |
A2-8/A2-11 |
|||||
|
chuck |
mm |
Ordinary Φ250 (82 holes)/Φ380 (130 holes) |
||||
|
Spindle taper taper |
No |
metric 90, 1:20 (82 holes)/metric 90, 1:20 (130 holes) |
||||
|
Optional 8-inch hollow chuck draw tube inner diameter |
mm |
Φ65 |
||||
|
Spindle limit speed |
rpm |
1800(82hole)/800(130Hole) |
||||
|
Tail stock sleeve diameter |
mm |
φ75 |
||||
|
Tail stock sleeve inner hole taper |
No |
MT5# |
||||
|
Tail stock sleeve stroke |
mm |
150 |
||||
|
Tail stock form |
Ordinary hand crank (optional hydraulic tailstock) |
|||||
|
Number of electric tool holders |
Pcs |
4 (optional 6/8 station electric) |
||||
|
Knife square size |
mm |
25×25 (four stations) |
||||
|
Screw model |
X Axis |
mm |
FDC2506-P3 |
FDC2506-P3 |
FDC2506-P3 |
|
|
Z Axis |
mm |
FDC4008-P3 |
FDC5010-P3 |
FDC5010-P3 |
||
|
X/Z rapid traverse speed |
m/min |
6/8 |
6/8 |
6/8 |
||
|
X travel |
mm |
280 |
280 |
280 |
||
|
Z travel |
mm |
1000 |
1500 |
2000 |
||
|
Minimum setting unit |
mm |
0.001 |
0.001 |
0.001 |
||
|
main motor power |
KW |
7.5 (Optional 11kw) |
7.5 (Optional 11kw) |
7.5 (Optional 11kw) |
||
|
total power |
KW |
13(17) |
13(17) |
13(17) |
||
|
Machine net weight |
Kg |
2650 |
3060 |
3260 |
||
|
Dimensions (L×W×H) |
mm |
2650×1650×1820 |
3150×1650×1820 |
3750×1650×1820 |
||
Standard Equipment
|
Name |
Specifications |
Quantity |
|
Control System |
GSK 980TC3 |
1 set |
|
Spindle motor |
7.5 KW |
1 set |
|
Spindle structure |
Step-less |
1 set |
|
Spindle bearing |
NN3024K/7024DB/NN3022K |
1 set |
|
Guide |
high-frequency hardening |
1 set |
|
Ball screw |
2506/4008(1 meter) |
1 set |
|
2506/5010(1.5 meter) |
1 set |
|
|
2506/5010(2 meter) |
1 set |
|
|
Screw bearing |
Special bearing for ball screw |
1 set |
|
Tool holder |
4-position electric tool |
1 set |
|
Automatic lubricating device |
RBCLB-2BZK |
1 set |
|
Three-jaw manual chuck |
K11250 |
1 set |
|
Cooling pump |
150W/250W |
1 set |
Optional Equipment
|
Part Name |
Details |
|
CNC system |
FANUC |
|
SIEMENS |
|
|
Chip conveyor |
Side place |
|
Behind place |
|
|
Oil mist collector |
|
|
Oil-Water Separator |
|
|
Bar material feeder |
|
|
Blowing device |
|
|
Water gun |
|
|
Soft jaw chuck |
|
|
Spindle bore: 130 mm |
|
Industry Applications
Horizontal CNC lathe is widely used in:

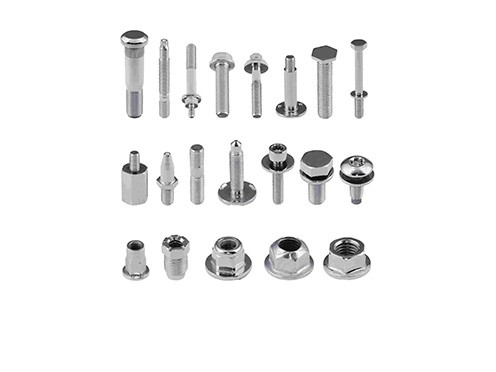

Automotive parts manufacturing

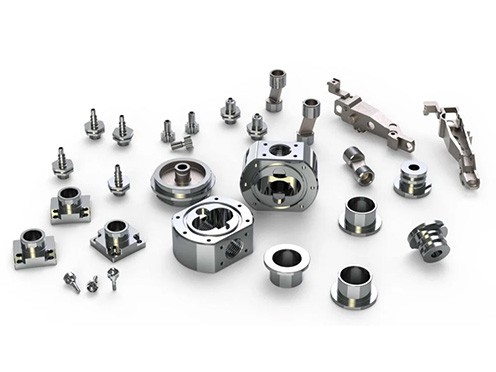

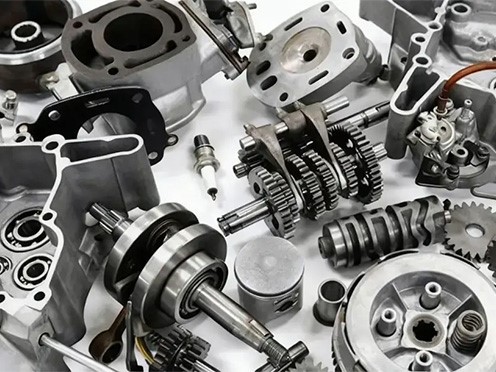

General mechanical parts

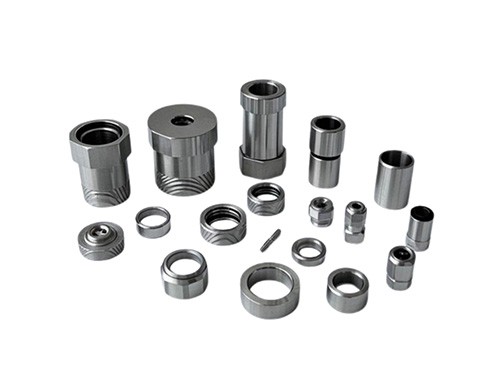

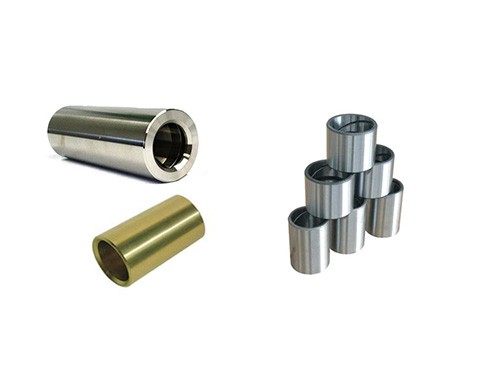

Shaft & sleeve components

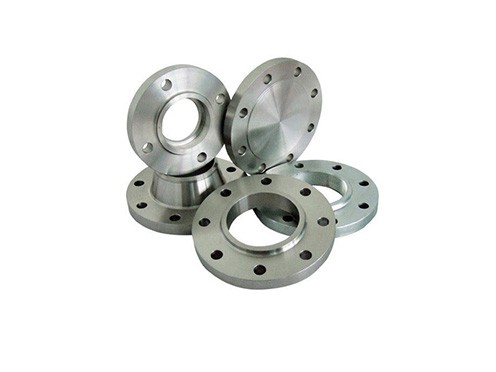

Flange & disc parts
Hardware & fasteners
Hydraulic & pneumatic parts

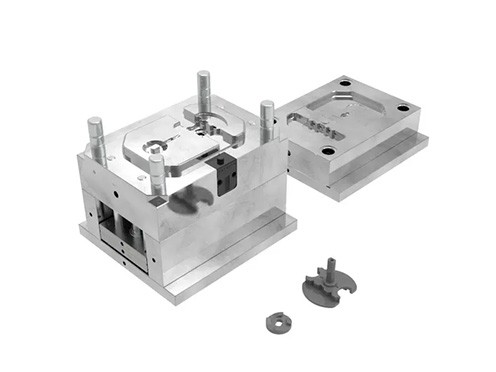

Mold & fixture processing
OEM & ODM Customization Service
We fully support OEM & ODM for horizontal CNC lathe:
- Custom machine color, logo, appearance and brand
- Custom CNC system (GSK, FANUC, SIEMENS, etc.)
- Custom spindle bore, chuck, speed, stroke
- Optional hydraulic tailstock, chip conveyor, bar feeder
- Custom automation integration for production lines
- Flexible cooperation for distributors, agents and end-users
Why Choose Us as Your Manufacturer
Professional Manufacturing Strength
20+ years of CNC machine tool experience, products exported to 50+ countries, ISO9001 certified quality control system.
High Precision & Stable Performance
High-rigidity hardened guideways, 0.001mm minimum feeding unit, long-term precision retention, service life extended by ≥3 years.
Full Customization & Cost Efficiency
One-stop OEM/ODM solutions, reduce processing cost by 15%–30%, fully match your production needs.
Fast Delivery & Global After-Sales
Standard models delivered in 15–30 days, on-site installation, commissioning, training, 24h remote support and fast spare parts supply.
FAQ
Q: 1.What is a horizontal CNC lathe used for?
A: It is used for high-precision turning of shaft, disc, sleeve parts, threads, end faces and complex surfaces.
Q: 2.What models are available in CK6150 series?
A: CK6150/1000, CK6150/1500, CK6150/2000, with center distance 1000mm–2050mm.
Q: 3.What spindle bore options do you have?
A: Φ82mm and Φ130mm spindle bore for choice.
Q: 4.Do you support OEM/ODM?
A: Yes, we provide full OEM & ODM customization services.
Q: 5.What's the delivery time?
A: Standard models: 15–30 days; customized models: 30–45 days.
Q: 6.Do you provide after-sales service?
A: Yes, we offer installation, commissioning, training and global technical support.
