Product Overview
The CK6185E series flat bed CNC lathe machine features a maximum swing diameter over the bed of Φ850mm and a maximum swing over the cross slide of Φ375mm, with processing lengths covering 950mm to 2950mm across four specifications (1000mm, 1500mm, 2000mm, 3000mm center distances).
The spindle through-hole diameter reaches Φ105mm, supporting large through-hole processing. Equipped with a manual three-jaw chuck (Φ400mm) and a C11 spindle interface, the spindle uses high-precision bearing components and has been dynamically balanced to ensure high operating accuracy, low noise, and strong rigidity - suitable for high-demand continuous cutting operations.
The CK6185E series is equipped with a GSK 980TC3/988T CNC system as standard, paired with domestically produced high-precision ball screws and P3-grade screw bearings. The X/Z axis rapid traverse speeds reach 4/5 m/min, with a minimum setting unit of 0.0001mm, delivering excellent response speed and processing accuracy for high-precision parts.

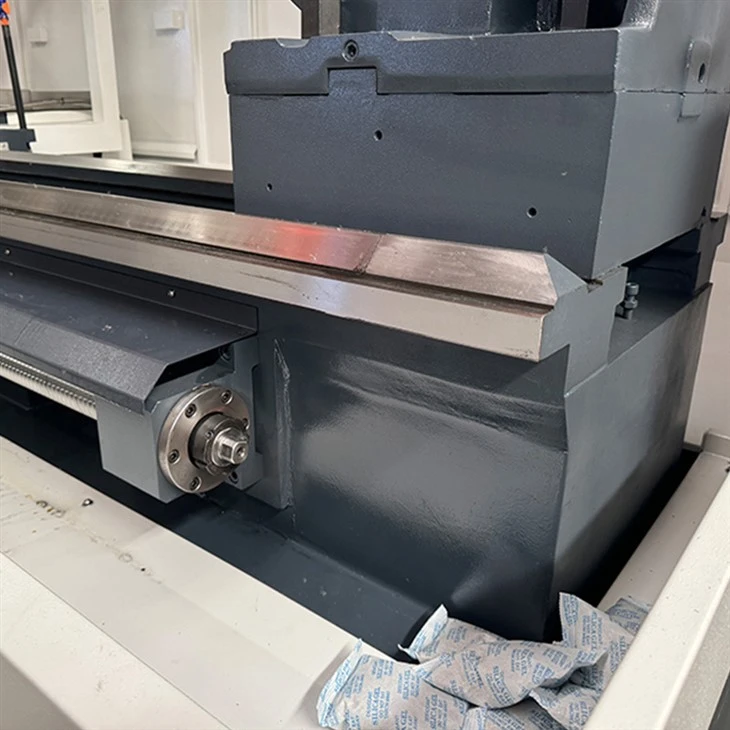

The machine tool adopts a high-frequency hardened hard rail design. The guide rails and saddle guide rails are made of special materials with super wear resistance and long-term accuracy retention. A chip scraper on the rail effectively prevents iron chips and coolant from corroding the guide rails, extending service life.
The tailstock features a large diameter Φ100mm manual design with a sleeve stroke of 250mm and MT6# taper, providing strong support rigidity for stable processing of long-axis workpieces. The tool holder is equipped with a standard 4-station electric tool holder supporting 32×32mm tool specifications to meet multi-station processing needs.
The lubrication system adopts centralized automatic quantitative lubrication to accurately lubricate the screw and guide rails. It automatically alarms when the operating status is abnormal, ensuring long-term efficient and stable operation of the whole machine.
The power configuration is well-balanced: the main motor power is 11kW, the total machine weight ranges from 4100kg to 5900kg, and the machine dimensions range from 3500×2000×2000mm to 5500×2000×2000mm, suitable for flexible layout in various industrial scenarios.
Flat Bed CNC Lathe Machine Key Features & Benefits
Φ105mm Large Spindle Through-Hole for Versatile Processing
The large spindle through-hole diameter supports bar stock up to Φ105mm, enabling efficient processing of large-diameter workpieces and reducing the need for secondary operations. This translates to higher productivity and lower handling costs.
Heavy-Duty Cutting with 11kW Spindle Motor
The 11kW frequency-controlled main motor delivers high torque for heavy cuts, allowing you to remove material faster without compromising surface finish. Perfect for demanding roughing operations in automotive and energy equipment manufacturing.
0.0001mm Ultra-High Precision for Critical Components
With a minimum setting unit of 0.0001mm, the CK6185E achieves exceptional accuracy for high-precision components. This means tighter tolerances, less scrap, and higher confidence in your finished parts.
High-Frequency Hardened Hard Rails for Long-Term Accuracy
The special-material guide rails are high-frequency hardened for super wear resistance. This ensures the machine maintains its original accuracy over years of heavy use, reducing maintenance frequency and extending service life.
Automatic Lubrication with Abnormal Alarm
The centralized automatic lubrication system delivers precise oil to all critical points and alarms automatically in case of abnormalities. No more manual lubrication guesswork - just reliable, worry-free operation.
Flexible Configuration for Diverse Production Needs
Available in four center distance options (1000mm, 1500mm, 2000mm, 3000mm) and with optional FANUC or Siemens CNC systems, the CK6185E adapts to your specific production requirements and workshop preferences.
Technical parameter
|
Item |
UNIT |
Specifications |
||||
|
CK6185E/1000 |
CK6185E/1500 |
CK6185E/2000 |
CK6185E/3000 |
|||
|
Max.swing diameter over bed |
mm |
φ850 |
φ850 |
φ850 |
φ850 |
|
|
X axis travel |
mm |
330 |
330 |
330 |
330 |
|
|
Z axis travel |
mm |
600 |
600 |
600 |
600 |
|
|
Swing over cross slide |
mm |
φ500 |
φ500 |
φ500 |
φ500 |
|
|
Distance between centers |
mm |
1000 |
1500 |
2000 |
3000 |
|
|
Max working diameter(Disc) |
mm |
850 |
850 |
850 |
850 |
|
|
Maximum turning length |
mm |
950 |
1450 |
1950 |
2950 |
|
|
Center height |
From the bed |
mm |
425 |
425 |
425 |
425 |
|
From the ground |
mm |
1125 |
1125 |
1125 |
1125 |
|
|
Spindle bore |
mm |
φ105 |
φ105 |
φ105 |
φ105 |
|
|
Bar capacity |
mm |
φ105 |
φ105 |
φ105 |
φ105 |
|
|
Hollow chuck rod bore(Optional) |
mm |
φ88 |
φ88 |
φ88 |
φ88 |
|
|
Spindle nose types |
C11 |
C11 |
C11 |
C11 |
||
|
Chuck |
mm |
Manualφ400 |
Manualφ400 |
Manualφ400 |
Manualφ400 |
|
|
Spindle bore taper |
No |
Metric120, 1：20 |
Metric120, 1：20 |
Metric 120, 1：20 |
Metric 120, 1：20 |
|
|
Spindle max speed |
rpm |
Manual 3 steps(10 ~85,40 ~ 425,100~850) |
Manual 3 steps(10 ~85,40 ~ 425,100~850) |
Manual 3 steps (10 ~85,40 ~ 425,100~850) |
Manual 3 steps(10 ~85,40 ~ 425,100~850) |
|
|
Tailstock quill diameter |
mm |
φ100 |
φ100 |
φ100 |
φ100 |
|
|
Tailstock quill taper |
No |
MT6# |
MT6# |
MT6# |
MT6# |
|
|
Tailstock quill travel |
mm |
250 |
250 |
250 |
250 |
|
|
Tailstock types |
Manual |
Manual |
Manual |
Manual |
||
|
Electric tool position |
pc |
4 |
4 |
4 |
4 |
|
|
Tool size |
mm |
32×32(4 position) |
32×32(4 position) |
32×32(4 position) |
32×32(4 position) |
|
|
Screw model |
X axis |
mm |
GD4005-P3 |
GD4005-P3 |
GD4005-P3 |
GD4005-P3 |
|
Z axis |
GD5010-P3 |
GD5010-P3 |
GD6310-P3 |
GD6310-P3 |
||
|
X/Z axis rapid traverse |
m/min |
4/5 |
4/5 |
4/5 |
4/5 |
|
|
X axis travel |
mm |
450 |
450 |
450 |
450 |
|
|
Z axis travel |
mm |
1100 |
1600 |
2100 |
3100 |
|
|
Minimum setting unit |
mm |
0.0001 |
0.0001 |
0.0001 |
0.0001 |
|
|
Main motor power |
kw |
11(Frequency) |
11(Frequency) |
11(Frequency) |
11(Frequency) |
|
|
Total power supply |
kw |
16 |
16 |
18 |
20 |
|
|
Machine weight |
kg |
4100 |
4500 |
5100 |
5900 |
|
|
Overall dimension |
mm |
3500×2000×2000 |
4000×2000×2000 |
4500×2000×2000 |
5500×2000×2000 |
|
Standard Equipment
|
Item |
Specification |
No |
Brand |
Origin |
|
|
Control system |
GSK 980TC3/988T |
1 set |
GSK |
China |
|
|
Spindle motor |
11 KW (Frequency) |
1 set |
GSK |
China |
|
|
Spindle structure |
Precision assembly |
1 set |
ANTS |
China |
|
|
Spindle bearing |
NN3032K/W33/P5;NN3028K/W33/P5 234432M/SP |
1 set |
China |
China |
|
|
Guide rail |
Hard rail |
1 set |
ANTS |
China |
|
|
X-Axis ball screw |
GD4005X818 |
1 set |
NMC |
China |
|
|
Z-Axis ball screw |
1/1.5Meters |
GD5010X1974/2474 |
1 set |
NMC |
China |
|
2/3 Meters |
GD6310X2974/4028 |
||||
|
X-Axis Screw bearing |
7602025/DB/P5;6205 |
1 set |
HBB |
China |
|
|
Z-Axis Screw bearing |
1/1.5Meters |
7602040/DB/ P5;6207 |
1 set |
HBB |
China |
|
2Meters |
7602045/QBC/P5 7602040/DB/P5 |
1 set |
|||
|
3Meters |
7602045/QBC/P5 |
2 set |
|||
|
Tool post |
LD4B-CK650 |
1 set |
WENCH |
China |
|
|
Automatic lubrication device |
RBCLB-3ZK |
1 set |
HEJIN |
China |
|
|
Three-jaw manual chuck |
K11400 |
1 set |
Universal |
China |
|
|
Cooling pump |
P=250W |
1 set |
ZHERI |
China |
|
|
T hydraulic station (optional) |
60L |
1 set |
MONFR |
China |
|
|
Hydraulic chuck (optional) |
KT12-3/ KT15-3 |
1 set |
BDEFU |
China |
|
Optional Equipment
|
Part Name |
Details |
|
CNC system |
FANUC |
|
SIEMENS |
|
|
Chip conveyor |
Side place |
|
Behind place |
|
|
Oil mist collector |
|
|
Oil-Water Separator |
|
|
Bar material feeder |
|
|
Soft jaw chuck |
|
|
Horizontal 6-station electric tool holder |
|
|
Horizontal 8-station electric tool holder |
|
|
Steady rest |
|
|
Full protection |
|
|
Follow rest |
|
Flat Bed CNC Lathe Machine Application
Mechanical Manufacturing
Ideal for machining various shafts, sleeves, flanges, and rotating components in general engineering applications requiring high precision and reliability.
Energy Equipment
Perfect for producing components for power generation, oil & gas, and renewable energy systems, including large-diameter shafts, rollers, and heavy-duty fittings.
Automotive Components
Widely used for manufacturing transmission shafts, axle components, brake discs, and gear blanks that demand consistent quality and high productivity.
Shaft & Disc Part Processing
Excellent for machining both long shaft-type workpieces (up to 2950mm turning length) and large-diameter disc components (up to Φ850mm), offering versatility across diverse part geometries.
FAQ
Q1: What is the maximum turning length of the CK6185E series?
A1: The CK6185E series offers four center distance options: 1000mm (max turning length 950mm), 1500mm (1450mm), 2000mm (1950mm), and 3000mm (2950mm), flexibly accommodating different workpiece sizes.
Q2: What is the spindle through-hole diameter and bar capacity?
A2: The spindle through-hole diameter is Φ105mm, supporting bar stock up to Φ105mm. An optional hollow chuck rod bore of Φ88mm is also available.
Q3: Can I choose a different CNC control system instead of GSK?
A3: Yes. While the GSK 980TC3/988T system is standard, we offer optional FANUC and SIEMENS systems to match your workshop's preference.
Q4: What is the spindle speed range of this machine?
A4: The spindle offers manual 3-step speed ranges: 10-85 rpm, 40-425 rpm, and 100-850 rpm, providing flexibility for different materials and cutting conditions.
Q5: What type of guide rails does the CK6185E use?
A5: The machine adopts high-frequency hardened hard rails made of special materials, offering super wear resistance and long-term accuracy retention.
Q6: What is the typical delivery time for this flat bed CNC lathe machine?
A6: Standard delivery is 30–45 days after order confirmation, depending on configuration and shipping destination.
Q7: Do you provide installation and training support?
A7: Absolutely. We offer installation guidance, on-site or remote training, and a 12-month warranty with lifetime technical support.
