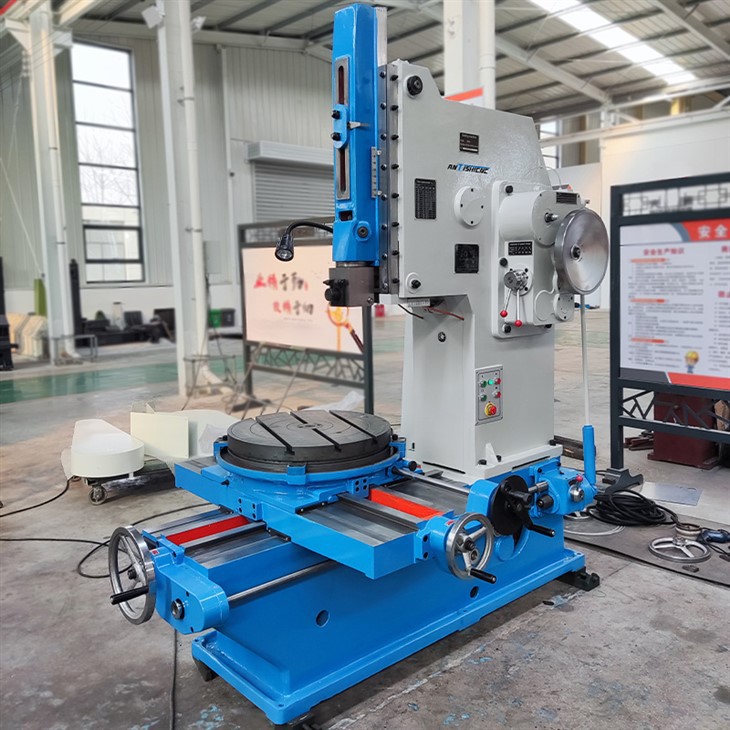

From the perspective of mechanical structure, the Slot grinder machine consists of four core functional modules:
Bed: As the core carrier of the whole machine frame, it integrates a precision transmission system that drives the movement of the ram to provide stable support for the operation of the whole machine;
Ram: A special slotting cutter is installed at the lower end, which performs vertical reciprocating motion under the servo drive. Cutting is performed during the downward phase, while the return phase maintains an empty stroke state to ensure safe separation of the tool and the workpiece;
Workbench: supports manual/automatic dual-mode control, and has multi-dimensional feeding capabilities in the horizontal, vertical and circumferential directions. When processing keyways, square holes, polygonal holes and other features, micron-level feeding accuracy is achieved through parametric control, effectively ensuring processing quality.
Features
Working range:The Slot grinder machines suitable for processing various planes, straight lines, internal and external forming surfaces, keyways, etc.; can be used for rough processing and fine processing.
Drive system: The ram drive is a DC motor
Workbench: The movement of the workbench can be motorized or manual
Lubrication: The ram guide rail, main drive worm, worm wheel, gear, rack, bearing, etc. are centralized pressure lubrication.
Remark: ANTISHICNC will update the technology of its products from time to time. ANTISHICNC reserves the right of final interpretation of the above technical parameters and descriptions. For more product information, please contact the ANTISHICNC team
Technical parameter
|
Specification |
B5032 |
|
Maximm cutting length |
32mm |
|
Maximum weigh of the workpiece |
500kg |
|
Maximum cutting force |
7500N |
|
Number of repetitions per minute of the ram |
20;32;50;80 |
|
Ram vertical adjustment distance |
315mm |
|
Table diameler |
630mm |
|
Distance between the support surface at the headstock and the front wall of the bed |
600mm |
|
Work surface to the lower |
490mm |
|
Maximum table longitudinal travel distance |
480Motorized |
|
Maximum table lateral travel distance |
480Motorized |
|
Work combination longitudinal and transverse motorized feed range |
0.08-1.21mm |
|
Table rotary motorized feed range |
0.052-0.783deg |
|
Main motor power |
4kw |
|
Main motor speed |
960 r.p.m |
|
Machine dimensions (L x W x H) |
2180×1505×2285mm |
|
Mahine weigh (about) |
3200kg |
