Shanghai Antishicnc Machine Equipment Co., Ltd. is one of the most reliable manufacturers and suppliers of vertical spindle surface grinder in China, specialized in providing high quality machines with low price. We warmly welcome you to wholesale durable vertical spindle surface grinder for sale here from our factory.
The machine tool design has the characteristics of high rigidity and high precision, which can meet the needs of high-end customers. The beam column is an integral wall panel structure, the vertical slide is a full-stroke support, and the turntable adopts a closed static pressure torque motor structure. A variety of spindle configurations are reserved for selection to meet the processing requirements of different parts of customers. This machine tool is widely used in the precision grinding of rotating parts in wind power, hydropower, aerospace, bearings and other industries.
Brief introduction to the technical features of the machine
This vertical spindle surface grinder is a high-precision CNC vertical grinder with double slides and double grinding heads, X and Z, U and W axes linkage. Double grinding heads can be optionally equipped to participate in grinding at the same time. The horizontal movement of the left horizontal slide is the X axis, the vertical movement of the left vertical slide (on which the vertical grinding wheel spindle is installed) is the Z axis, the horizontal movement of the right horizontal slide is the U axis, the vertical movement of the right vertical slide (on which the horizontal grinding wheel spindle is installed) is the W axis, and the rotary movement of the worktable is the C axis. This vertical spindle surface grinder can process large precision disc sleeve parts, and can complete the inner hole, outer circle and end face grinding in one clamping. The maximum diameter of the part can reach 2100mm and the maximum height can reach 550mm. The machine tool design has the characteristics of high rigidity and high precision, which can meet the needs of precision parts processing.
Standard Parts
Vertical spindle surface grinder Main machine (one unit): base, crossbeam, column, horizontal slide, vertical slide, left grinding wheel spindle, turret, right grinding wheel spindle, electric permanent magnetic chuck, turntable spindle hydraulic and cooling system, grinding wheel spindle cooling system, torque motor cooling system, magnetic roller paper belt cooling water tank, electric box, single-point vertical and horizontal grinding wheel dresser, operation box and a full set of electrical control systems, machine tool closed cover, accessories, etc.
List of main purchased parts
|
Main Parts |
Brand |
|
High precision roller guide |
SCHNEEBERGER |
|
Linear ruler (X/U axis) |
FAGOR |
|
Ball Screw |
Taiwan Brand |
|
CNC system |
SIEMENS 828D |
|
Servo motor and controller |
SIEMENS |
|
Screw bearings |
NSK |
|
Frequency Converter |
Hepmont |
|
Torque motor |
Dalian Kede |
Note: 1) The brands of the main purchased parts of machine tools listed in the above details and this technical data, and the country and region names shown only indicate the country and region to which the brand belongs, and do not refer to the origin of the purchased parts.
Standard accessories for machine tools
|
Name |
Specification |
Qty |
Remark |
|
Lubrication pump |
AMO-Ⅱ-150S/04ⅡMP |
1 set |
Installed on machine tool |
|
Rotary table spindle hydraulic system |
1 set |
With oil cooler |
|
|
Magnetic roller paper tape cooling water tank |
150L/min |
1 set |
With water cooler and water gun |
|
Machine Mattress Iron |
Full set |
||
|
Grinding wheel chuck |
|
2 sets |
|
|
Single point vertical and horizontal grinding wheel dresser |
1 set |
Installed on machine tool |
|
|
Pneumatic system |
1 set |
Installed on machine tool |
|
|
Torque motor cooling system |
1 set |
With water cooler |
Random technical documents
|
Name |
Qty |
|
Certificate of conformity, instruction manual, packing list |
1 serving |
|
Electrical operation manual, electrical schematics |
1 serving |
|
Other accessories certificates and instructions |
1 each |
Special accessories (Optional)
Electromagnetic chuck
Automatic tool magazine 6T
Roller device for grinding wheel correction
Automatic workpiece measuring system
Operator door locking system (front door)
Hot Tags: vertical spindle surface grinder, China vertical spindle surface grinder manufacturers, suppliers, factory, vertical grinding machine, Cnc Vertical Grinding Machine, Vertical Spindle Surface Grinder, Vertical Rotary Surface Grinder
Technical parameter
1. Main parameters of machine tools:
|
Parameters |
Unit |
MGK28200 |
|
Diameter of worktable |
mm |
2000 |
|
Maximum workpiece height (without tooling) |
mm |
550 |
|
Maximum rotation diameter of workpiece |
mm |
φ2300 |
|
Inner hole machinable range |
mm |
300~2000 |
|
Maximum depth of inner hole machining |
mm |
550 |
|
External machining range |
mm |
≤2100 |
|
Maximum machining height of outer circle |
mm |
550 |
|
Maximum workpiece weight (including tooling, excluding suction cup) |
kg |
5000 |
|
X -axis travel |
mm |
2050 |
|
U-axis travel |
mm |
2700 |
|
X-axis/U-axis maximum moving speed |
mm/min |
8000 |
|
Z- axis/W-axis travel |
mm |
600 |
|
Z axis/W axis maximum moving speed |
mm/min |
8000 |
|
X/Z/U/W axis feed resolution |
mm |
0.001 |
|
Machine gross weight |
K g |
55000 |
|
Estimated Machine size |
m |
9×7×5 (LxWxH) |
2. Table technical parameters
|
Parameters |
Unit |
MGK28200 |
|
Maximum speed |
rpm |
40 |
|
Torque motor rated torque |
Nm |
2500 |
|
Torque motor cooling method |
Water Cooling |
|
|
Cooling capacity of water chiller |
kw |
12 |
|
Direction of rotation |
Both positive and negative |
|
|
Rotary table spindle structure |
Precision closed hydrostatic spindle |
3. Left vertical grinding wheel spindle
|
Parameters |
Unit |
MGK28200 |
|
Maximum grinding depth |
mm |
550 |
|
Maximum speed |
rpm |
2200 |
|
Direction of rotation |
Both positive and negative |
|
|
Frequency conversion motor power |
kw |
twenty two |
|
Bearing type |
Dynamic and static pressure bearings |
|
|
Spindle external taper |
1:5 |
|
|
Grinding wheel maximum speed |
m/s |
35 |
|
Grinding wheel specification range |
mm |
φ 300~500* φ203* 63~100 |
4. Right horizontal grinding wheel spindle
|
Parameters |
Unit |
MGK28200 |
|
Maximum distance from spindle center to worktable |
mm |
1050 |
|
Maximum speed |
rpm |
1500 |
|
Direction of rotation |
Clockwise |
|
|
Frequency conversion motor power |
kw |
11 |
|
Bearing type |
Dynamic and static pressure bearings |
|
|
Spindle external taper |
1:5 |
|
|
Grinding wheel maximum speed |
m/s |
35 |
|
Grinding wheel specifications |
mm |
φ 500* φ203* 75 |

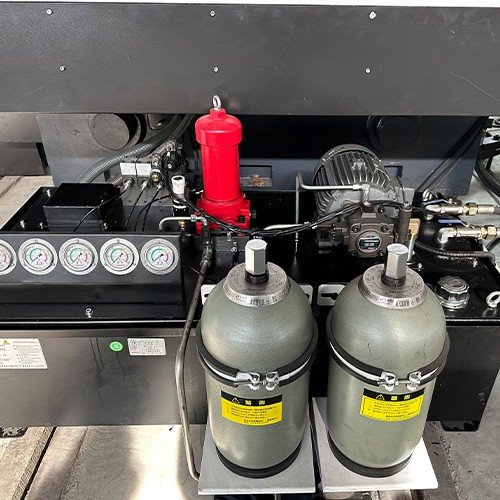

5. Rotary table spindle hydraulic system
|
Parameters |
Unit |
MGK28200 |
|
Nominal displacement |
L/min |
32 |
|
Nominal pressure |
MPa |
7 |
|
Fuel tank capacity |
L |
300 |
|
Motor power |
kw |
3.75 |
|
Lubricating oil brand |
32# anti-wear hydraulic oil |
|
|
Oil cooler cooling capacity |
kw |
7 |
6. Grinding wheel spindle oil supply system
|
Parameters |
Unit |
MGK28200 |
|
Nominal displacement |
L/min |
16 |
|
System pressure |
MPa |
3.5 |
|
Lubricating oil brand |
7~10# spindle oil |
|
|
Oil cooler cooling capacity |
kw |
3.5 |
|
Other Configuration |
Pressure relays, filters, accumulators |
7. Cooling water tank
|
Parameters |
Unit |
MGK28200 |
|
Rated displacement |
L/min |
150 |
|
Rated head of cooling pump |
m |
20 |
|
Water tank capacity |
L |
800 |
|
Water pump motor power |
kw |
1.5 |
|
Cooling capacity of water chiller |
kw |
5 |
|
Other Configuration |
Magnetic paper tape filter |
8. Electrical system
|
Parameters |
Unit |
MGK28200 |
|
Total machine power |
KVA |
Approx. 110 |
Machine tool accuracy
According to the relevant requirements of our company's product "Certificate of Conformity", some accuracy requirements are as follows:
1. Geometric accuracy
|
Inspection items |
Tolerance (mm) |
|
Radial runout of rotary table spindle |
0.003 |
|
Axial movement of the rotary table spindle |
0.003 |
|
Vertical grinding wheel spindle axial/radial runout |
0.001 |
|
Horizontal grinding wheel spindle axial/radial runout |
0.001 |
|
X-axis/U-axis axial motion straightness |
0.006/500 |
|
Straightness of Z-axis axial motion |
0.006/500 |
|
Parallelism of the Z-axis axial motion to the worktable rotation axis in the XZ plane |
0.01/500 |
|
Perpendicularity of X-axis axial motion to the table rotation axis |
0.01/500 |
2. CNC axis accuracy
|
Inspection items |
Tolerance (mm) |
|
Positioning accuracy |
0.01 |
|
Repeat positioning accuracy |
0.06 |
