Shanghai Antishicnc Machine Equipment Co., Ltd. is one of the most reliable manufacturers and suppliers of traditional lathe machine in China, specialized in providing high quality machines with low price. We warmly welcome you to wholesale durable traditional lathe machine for sale here from our factory.
Products Description
- Threading Inch, Metric, Module and D.P. ;
- Perform drilling, boring and groove broaching;
- Machine all kinds of flat stocks and those in irregular shapes;
- Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters;
- Both Inch and Metric system are used on these series lathes, it's easy for people from different measuring systems countries;
- traditional lathe machine High anti twist water flat bed, high quality cast iron is carefully manufactured, and the guide surface is treated with intermediate frequency induction quenching precision;
- The guide rail pair composed of polymerizing tetrafluoroethylene guide rail soft belt has good wear resistance, vibration absorption and precision retention;
- The spindle adopts three support structure, with good rigidity, high precision and strong cutting;
- Wide speed regulation range and reasonable speed can be selected;
- lt can directly turn metric and inch threads;
- In addition to conventional turning, saddle lathe can also turn all kinds of flat and special-shaped parts;
- These series lathes operate on power supply of different voltages (220V,380V,420V) and different frequencies (50HZ,60HZ).
Traditional lathe machine Machine Standard
3-jaw chuck and adapt
4-jaw chuck and adapt
4-station conventional tool post
Drive plate
Follow rest
Steady rest
LED work lamp
Foot brake
Lathe reducer
Dead center
Suitable wrench
Oil gun
Mechanical feed stop
Full splash guard

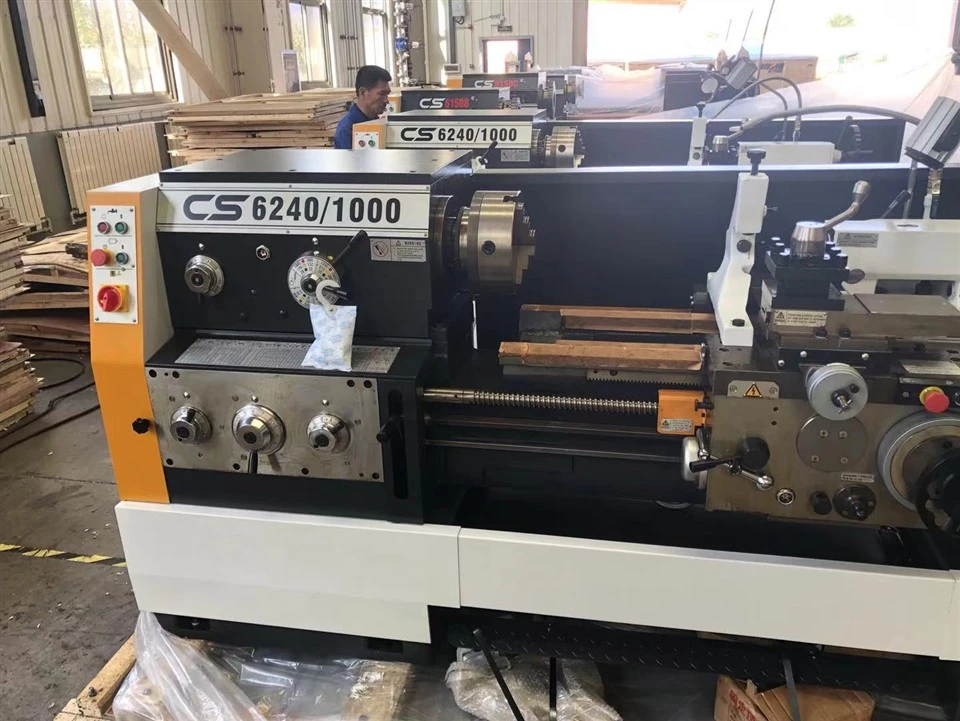

CS6240-1000 Lathe Machine
Technical parameter:
|
Item |
Unit |
Parameter |
|
|
CS6240 |
|||
|
Capacity |
Max swing over bed |
mm |
φ400 |
|
Max swing in gap |
mm |
φ630 |
|
|
Effective length in gap |
mm |
240 |
|
|
Max swing over slide |
mm |
φ220 |
|
|
Max workpiece length |
mm |
1000 |
|
|
Machine bed width |
mm |
390 |
|
|
Spindle |
Spindle Aperture Diameter |
mm |
φ52 |
|
Spindle nose |
ISO 702/Ⅲ No.6 bayonet type |
||
|
Spindle speed |
r/min |
24 step 9-1600 |
|
|
Spindle motor |
kW |
7.5 |
|
|
Tailstock |
Quill dia./travel |
mm |
φ75/150 |
|
Taper of center |
MT |
5 |
|
|
Tool post |
Number of station/Tool section |
4/25X25 |
|
|
Feed |
Max. travel of upper toolpost |
mm |
145 |
|
Max. travel of lower toolpost |
m/min |
320 |
|
|
X-axis feed |
mm/r |
93 sorts 0.012-2.73 |
|
|
Z-axis feed |
mm/r |
93 sorts 0.028-6.43 |
|
|
Metric thread |
mm |
48 sorts 0.5-224 |
|
|
Inch thread |
t.p.i |
48 sorts 72-1/8 |
|
|
Module thread |
πmm |
42 sorts 0.5-112 |
|
|
DP thread |
DP |
42 sorts 56-1/4 |
|
|
Others |
Coolant pump motor |
kW |
0.06 |
|
Machine length |
mm |
2632 |
|
|
Machine width |
mm |
975 |
|
|
Machine height |
mm |
1230 |
|
|
Machine weight |
kg |
2050 |
|
