Equipment Introductions

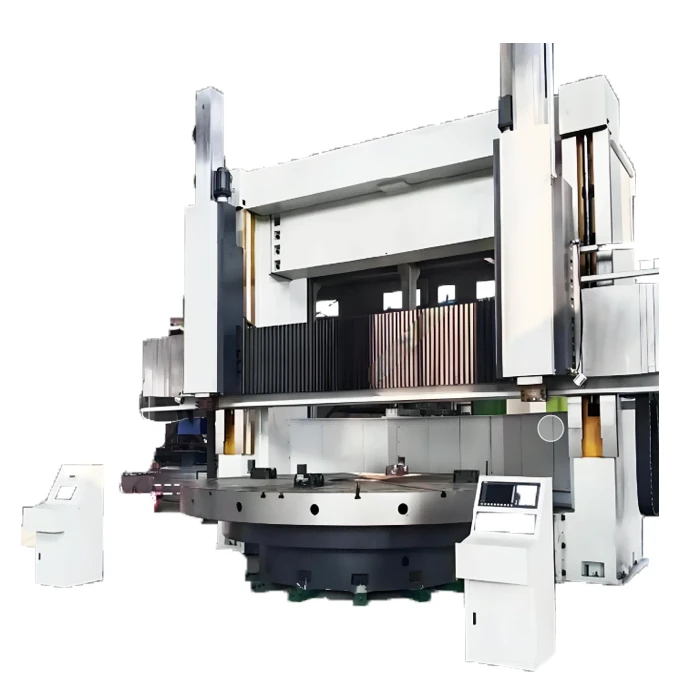

This VTL turning machine boasts exceptional machining capabilities, with a maximum turning diameter of up to 5000 mm, a table diameter of 4500 mm, and a maximum turning height of 4500 mm. It easily handles a wide range of large workpieces. The worktable supports a maximum load capacity of 50 tons, providing stable support for heavy rough or finished parts and ensuring a secure machining process.
In terms of power and precision, the spindle head is driven by a 90 kW servo motor through a two-speed vertical gearbox, offering flexible and stable speed adjustment. This allows the machine to accurately adapt to various machining conditions, from roughing to finishing operations. The system delivers high torque output for efficient cutting of high-strength materials while maintaining excellent rotational accuracy. This ensures high dimensional precision and surface quality of the machined components. Additionally, the low noise level during operation contributes to a more comfortable workshop environment.

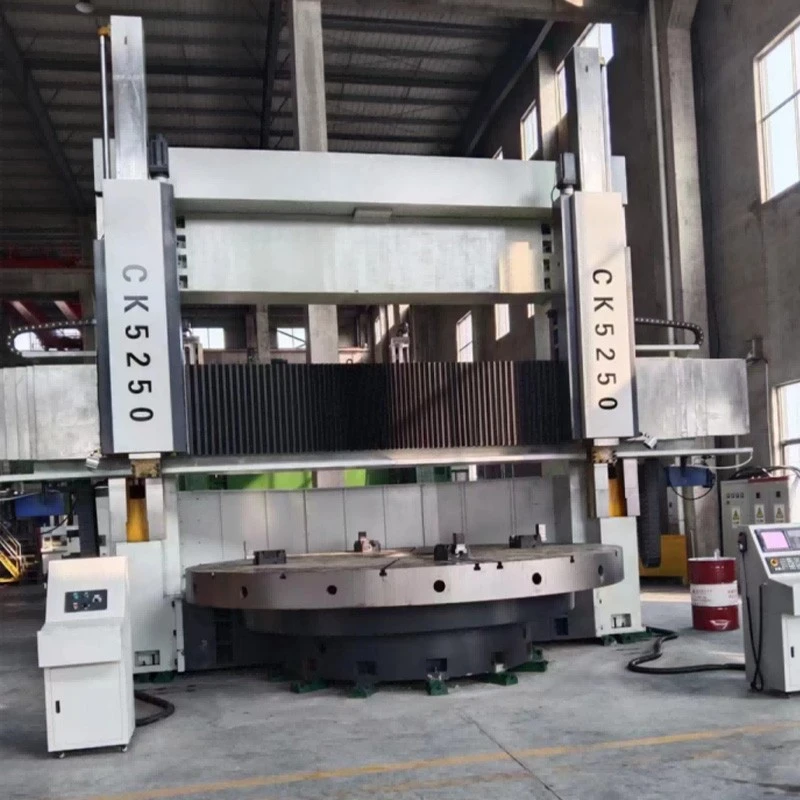

Whether it's the turning of large flanges, hubs, cylinders, or the precision machining of complex surfaces, the CK5250X45/50 stands out with its outstanding machining range, load-bearing capacity, and operational stability. VTL turning machine delivers an efficient, precise, and reliable solution for large-scale component manufacturing, helping enterprises enhance productivity and machining quality in the heavy manufacturing sector.
Hot Tags: vtl turning machine, China vtl turning machine manufacturers, suppliers, factory, Cnc Vertical Borer, VTL Turning Machine, Cnc Vertical Turning Lathe Machine, Vertical Cnc Lathe Machine, vertical turning machine, Cnc Vertical Lathe Machine
Technical parameter
|
Specifications |
CK5250X45/50 |
|
Maximum Turning Diameter |
5000 mm |
|
Table Diameter |
4500 mm |
|
Maximum Machining Height |
3150 mm |
|
Maximum Workpiece Weight |
50 t |
|
Maximum Table Torque |
100 kN·m |
|
Table Speed Range |
1～40 r/min |
|
Horizontal Stroke of Vertical Tool Post |
-50～2700 mm |
|
Ram Stroke of Vertical Tool Post |
1600 mm |
|
Ram Cross-Sectional Dimension |
260x260 mm |
|
Tool Shank Cross-Sectional Dimension |
40×40 mm |
|
Cutting Force of Right Tool Post |
70 kN |
|
Cutting Force of Left Tool Post |
50 kN |
|
Feed Rate Range of Tool Post |
0.1～2000 mm/min |
|
Feed Rate Steps |
Stepless |
|
Rapid Traverse Speed of Tool Post |
2000 mm/min |
|
Torque of Feed Servo Motor |
36 N·m |
|
Crossbeam Stroke |
3500 mm |
|
Crossbeam Movement Speed |
300 mm/min |
|
Main Motor Power (Servo) |
90 kW |
|
Crossbeam Lifting Motor Power |
15 kW |
|
Positioning Accuracy |
0.03 mm |
|
Repeatability Accuracy |
0.015 mm |
|
Machining Dimensional Accuracy |
IT7 |
|
Machine Tool Weight (Approx.) |
80 t |
|
Overall Dimensions of Machine Tool |
7500x10500x7000 mm |
Standard Equipment
|
No |
Specifications |
|
1 |
Left tool post: Siemens 828D system (2-axis control) |
|
2 |
Right tool post: DVT structure (Beijing Hyper Synchronous) |
|
3 |
Two-speed vertical gearbox |
|
4 |
Main motor: Beijing Hyper Synchronous servo motor, 90KW |
|
5 |
Ram cross-section: 260×260 mm |
|
6 |
Upper beam guideways: Steel-lined; Beam with movable walkway |
|
7 |
All wedges: Copper wedges |
|
8 |
Beam with stainless steel protection |
