Shanghai Antishicnc Machine Equipment Co., Ltd. is one of the most reliable manufacturers and suppliers of vertical machining center vmc in China, specialized in providing high quality machines with low price. We warmly welcome you to wholesale durable vertical machining center vmc for sale here from our factory.

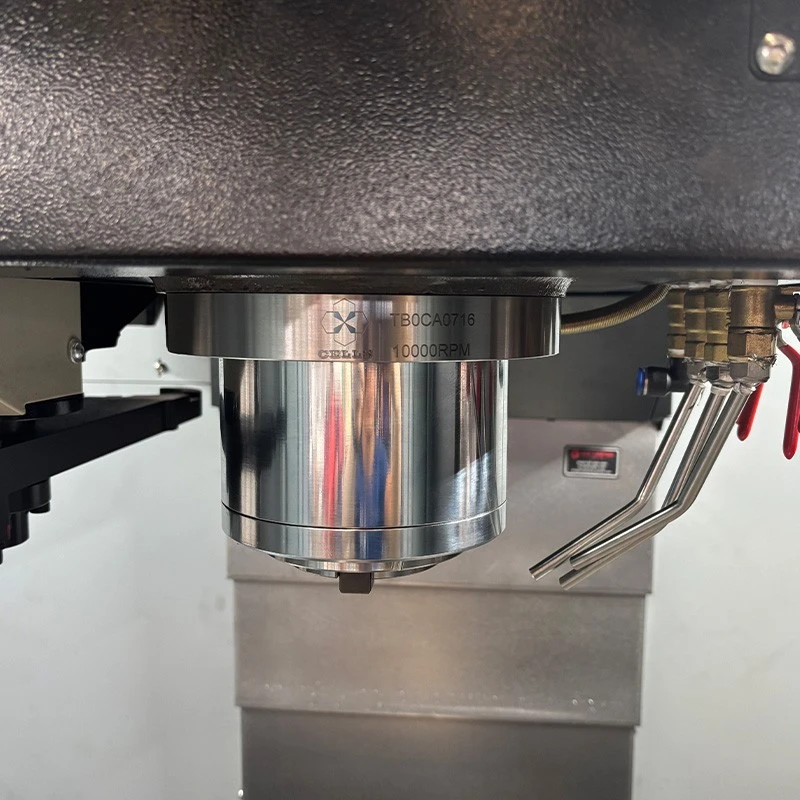

Introductions
The Vertical machining center vmc utilizes a vertical frame design with a column fixed to the machine bed. The spindle head moves vertically along the column in the Z axis, the saddle moves longitudinally along the bed in the Y axis, and the table moves laterally along the saddle in the X axis. This three-axis linkage provides exceptional precision, ensuring dimensional tolerance control when machining complex surfaces.
Core components such as the machine bed, table, saddle, column, and spindle head are all made of high-strength cast iron from Yunnan. Cast using a resin-bonded sand molding process, they undergo two aging treatments to completely eliminate internal stresses and effectively prevent deformation during long-term use. Utilizing SW 3D modeling and Ansys finite element analysis for structural optimization, the overall machine rigidity and stability have been significantly improved, significantly suppressing vibration and deformation caused by cutting forces and providing a solid foundation for high-precision machining.
Through its programmed machining process, the VMC1160 effectively shortens production cycles and reduces errors caused by manual intervention, helping users achieve high economic returns in high-end manufacturing fields such as aerospace, precision molds, and automotive parts. Vertical machining center vmc is an ideal choice for achieving a balance between machining accuracy, process coverage, and production efficiency.
Parameter
|
Model |
Unit |
VMC 1160 |
|
X-axis travel |
mm |
1100 |
|
Y-axis travel |
mm |
600 |
|
Z-axis travel |
mm |
600 |
|
Table size |
mm |
1200×600 |
|
Maximum table load |
kg |
800 |
|
T-slots (number×width×pitch) |
mm |
5-18-100 |
|
Spindle power |
kW |
11/15 |
|
Spindle taper |
|
BT40/φ150 |
|
Maximum spindle speed |
rpm |
8000 |
|
Rapid traverse (X/Y) |
mm/min |
36000 |
|
Rapid traverse (Z) |
mm/min |
36000 |
|
Cutting feed rate |
mm/min |
1-10000 |
|
Feed motor |
N·m |
22/22/22 |
|
Distance from spindle nose to table top |
mm |
120-620 |
|
Distance from spindle center to column guideway |
mm |
625 |
|
Maximum tool diameter |
mm |
Φ78/Φ120 |
|
Maximum tool length |
mm |
300 |
|
Maximum tool weight |
kg |
8 |
|
Positioning accuracy |
mm |
±0.008 |
|
Repeatability accuracy |
mm |
±0.0075 |
|
Machine weight |
kg |
6000 |
|
Overall dimensions |
mm |
3000×2500×2550 |
Standard Equipment
|
No. |
Item |
Parameters |
|
1 |
Control System |
GSK25i |
|
2 |
Mechanical Spindle |
Belt-driven BT40-￠150 |
|
3 |
X-axis Ball Screw |
R40-12/16 |
|
4 |
Y-axis Ball Screw |
R40-12/16 |
|
5 |
Z-axis Ball Screw |
R40-12/16 |
|
6 |
X-axis Linear Guideway |
2-45 roller-type heavy-duty linear guideway |
|
7 |
Y-axis Linear Guideway |
2-45 roller-type heavy-duty linear guideway |
|
8 |
Z-axis Linear Guideway |
2-45 roller-type heavy-duty linear guideway |
|
9 |
Angular Contact Ball Bearing |
3062 |
|
10 |
Screw Pre-tension Nut |
YSR |
|
11 |
Centralized Automatic Lubrication System |
Volumetric type |
|
12 |
Pneumatic System |
- |
|
13 |
Lighting System |
Work lamp |
|
14 |
Tool Clamping Cylinder |
Booster type |
|
15 |
Electrical Cabinet Thermal Cycle Exchanger |
- |
|
16 |
Internal Protective Telescopic Shield |
Helmet-type telescopic |
|
17 |
Fully Enclosed Outer Guard |
Fully enclosed (factory color) |
|
18 |
Oil Cooler |
|
|
19 |
High-pressure Flushing Device |
Water gun |
|
20 |
Disc-type ATC (Automatic Tool Changer) |
BT40-24T |
|
21 |
Chain-type Chip Conveyor |
